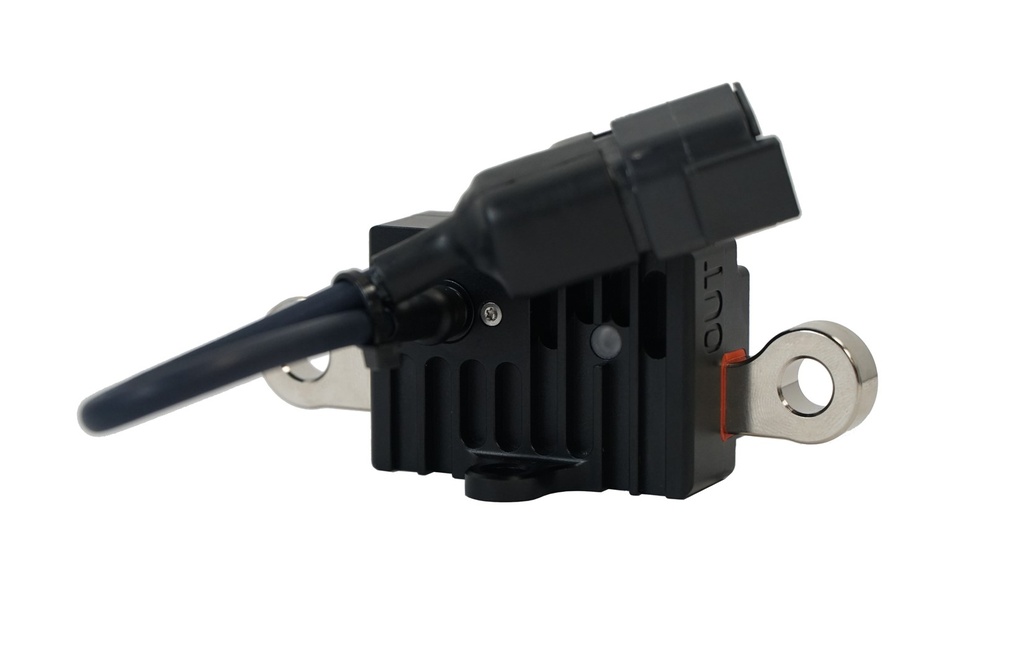

Battery Isolator Club

https://www.ecumasterbenelux.eu/web/image/product.template/764/image_1920?unique=2d610eb

Ecumaster Battery Isolator is een motorsport-masterrelaisapparaatontworpen voor FIA-conforme batterij-isolatie en motoruitschakeling.

375,00 € 375.0 EUR 375,00 € Inclusief btw

309,92 € Inclusief btw

Niet beschikbaar voor verkoop

(375,00 € / Stuks)

Deze combinatie bestaat niet.

Website productcategorie
PMU Serie , PMU serie
Interne referentie
3S2ISO0003

Het apparaat is ontworpen voor zware motorsportomgevingen en weegt
slechts 83 gram. Met een volledig solid-state ontwerp, een afwezigheid van mechanische
componenten zorgen voor een lange levensduur en hoge betrouwbaarheid.

•Weight: 83g
•Dimensions: 50mm x 100mm x 38.5mm
•Voltage range: 6V – 19V, 28V transient
(12V automotive installations only)
•Operating temperature range: -40C + 125C
•Current capability: 300A continuous, peak up to 1000A
•Current measurement resolution 4A
•Current measurement range: -1000A to 1000A
•Current measurement accuracy: ±10%
•Inductive load switching capability: 600mJ
•Enclosure: Anodized aluminium, IP67 rated
• High current terminals: M8 nickel plated terminals
or Radlok connectors
•Signal connector: Deutsch ASX202-06PN
(mating plug ASX602-06SN included)
•Power save state current consumption: <1mA
•ON state current consumption: ~20mA
•Engine kill output: 3A, High (VBat), Low (GND) or Hi-Z

wat zit in de doos?

1x Ecumaster Battery Isolator Club
1x Connector DTM06-6S
6x Terminal AT62-20-0122
