EGT to CAN 8ch

https://www.ecumasterbenelux.eu/web/image/product.template/537/image_1920?unique=1c32395

149,00 € 149.0 EUR 149,00 € Inclusief btw

123,14 € Inclusief btw

Niet beschikbaar voor verkoop

(149,00 € / Stuks)

Deze combinatie bestaat niet.

Website productcategorie
Accessoires , Accessoires
Interne referentie
3S2EGT0007

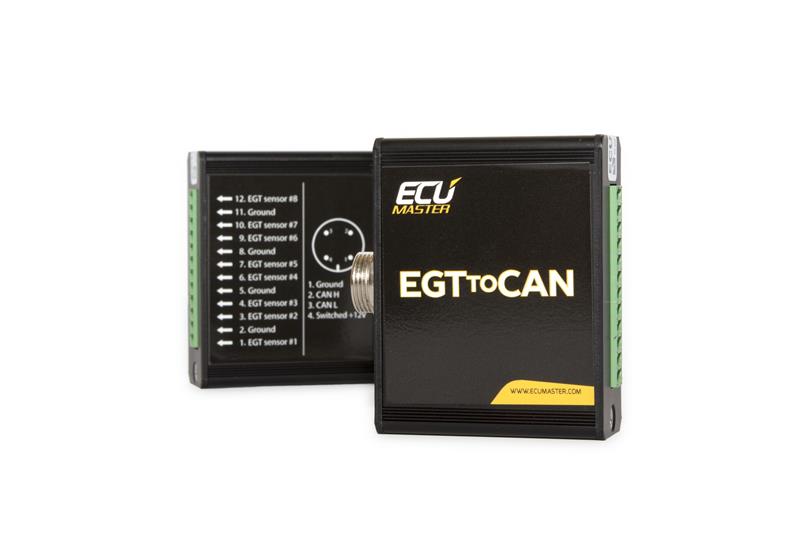

The EGT to CAN module collects input signals from 8 EGT probes (K-Type thermocouples), converts the probe voltage into a numerical temperature figure and sends the appropriate data via a CAN bus. The module is fully configurable using USB connection and Microsoft Windows based client software. High quality EGT sensors are available on request.

Using ECUMASTER EMU engine management it is possible to trim each cylinder fuel dose based on EGT temperatures readings.

Up to 8 EGT probes,
Cold junction compensation
0-1250C input range
CAN 2.0 compatible
Configurable CAN bitrate, byte order (Intel, Motorola), message IDs
USB port for PC connection
Client software for configuration and temperature monitoring

wat zit in de doos?

1x Ecumaster EGT to CAN Module
1x Cabel AA
1x Connector NC/4P-514

https://www.ecumaster.com/products/egt-to-can/

No Specifications
